SOLIDWORKS® Visualize enables users of SOLIDWORKS and other CAD applications to visually communicate and collaborate with high-quality real-time rendering that accelerates design decisions and leads to more innovative solutions.

Dedicated Visualize Rendering

Visualize has a variety of rendering modes but for evaluating true ray-traced real world lighting, materials and finishes, it’s necessary to use the “accurate” rendering mode. This mode takes advantage of GPU accelerated rendering and performance can be boosted with multiple GPUs – ideal for real time design review or accelerated frame rendering. Since licensing is tied to the machine and not the number of GPUs, it makes sense to boost Visualize in a GPU dense system.

Suggested Systems

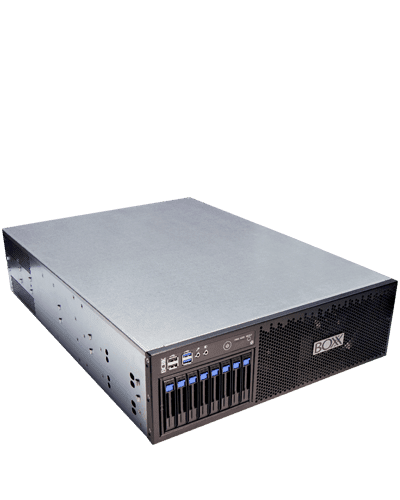

APEXX 5 8904R

The 3U rackmounted version of the APEXX 5 8904 - complete with dual Intel® Xeon® processors - accomodates up to 5 GPUs with additional slots for PCIe add in cards like high speed storage and networking.


UP To 3.7 GHz
UP To 44 cores
UP To 4 GPU
UP To 512GB

Typically ships in 13 - 15 business days. Please refer to the Ship Date on the emailed receipt upon order completion.

Basic Configuration Specs

  • DUAL 12-core Intel® Xeon® 2.1GHz processors (24 total cores)
  • 32GB DDR4-2133 memory
  • 1 x NVIDIA® Quadro™ M5000 graphics
  • 240GB SATA 6GB/s SSD
  • Microsoft® Windows™ 10


DETAILED SPEC SHEET
APEXX 8R

The ideal platform for GPU-accelerated rendering, APEXX 8R features dual Xeon processors and is configurable with up to eight professional, dual-width NVIDIA® Quadro™ or AMD® Radeon Pro™ graphics cards.


UP To 3.5 GHz
UP To 44 cores
UP To 8 GPU
UP To 1TB

Typically ships in 13 - 15 business days. Please refer to the Ship Date on the emailed receipt upon order completion.

Basic Configuration Specs

  • Configurations will vary greatly based on specific needs. Please contact us for a quote.


DETAILED SPEC SHEET
Visualize and Solidworks

Some users may wish to run Visualize on the same machine they use for CAD design. While we recommend offloading rendering whenever possible, we offer a few models perfectly suited for this workflow. Since SOLIDWORKS is lightly threaded, our overclocked workstations are the fastest in the industry for these tasks. Adding visualize into the mix means you’re also want at least one dedicated GPU for rendering and one for your CAD display. Our multi-GPU overclocked workstations are perfect for this scenario.

Suggested Systems
APEXX S3

This S3 features 8th generation Intel Core i7 processors with six cores, liquid cooling and support for up to 3 professional GPUs. Our best-selling system in 2018 is a good choice if you seek to match the configuration of prior system purchases.


UP To 4.8 GHz
UP To 6 cores
UP To 3 GPU
UP To 64GB

Typically ships in 5 - 7 business days. Please refer to the Ship Date on the emailed receipt upon order completion.

Basic Configuration Specs

  • 6-core Intel® Core™ i7 4.8GHz processor
  • 16GB DDR4-2666 memory
  • NVIDIA® Quadro™ P2000 5GB graphics
  • 512GB M.2 PCIe SSD
  • Microsoft® Windows™ 10

Starting at
$3,662.00

DETAILED SPEC SHEET



BOOSTING SOLIDWORKS VISUALIZE

BOXX Technical Marketing Manager and 3D artist Joe Pizzini shows off our APEXX 8R, running SOLIDWORKS® Visualize with 8 NVIDIA® P6000 GPUs!
